How to overclock a motherboard-:Complete Guide

Do you want to increase the performance of your PC without spending too much? Overclocking your motherboard is the most cost-effective solution for you.

Learn how to push your CPU and GPU to the max with this complete guide on overclocking a motherboard.


Overclocking is the process of increasing the speed of your motherboard’s processor and RAM beyond their factory settings. It is a fairly simple process and can be done in a few easy steps. When successful, overclocking can significantly increase your system’s performance, allowing for smoother gaming, faster loading times and more reliable operation. In this guide, we’ll walk through how to overclock a motherboard easily and effectively so you can get the most out of your computer.

Before you begin overclocking your motherboard, there are several things that you need to consider before taking the plunge:

  • Compatibility: All components must be compatible with overclocking or else it will not work correctly. Do some research to make sure that all parts are designed for overclocking before proceeding any further.
  • Ease-of-Use: Many motherboards come with built-in bios settings that allow easy access to all of your overclocking tasks without requiring any extra software or knowledge from the user; however, third party tools might be necessary depending on which type of motherboard you have. Be sure to purchase a model that provides great usability for these processes; otherwise it will take much longer than necessary to get up and running properly.
  • Cooling Systems: To keep temperatures low during an overclock session, it is important to have good cooling systems in place (air or water cooling). Poor cooling could lead to damaging temperatures in CPU/GPU/RAM and other key components leading them prone to very short lifespans if not properly cooled! Be sure you have adequate airflow throughout the case when running an overclock session; otherwise, damage can occur quickly with little warning signs until it’s too late.

Definition of overclocking a motherboard

Overclocking a motherboard is the process of increasing the clock speed of your hardware components to obtain faster system performance. This process generally involves increasing a component’s clock rate, which can increase its computing power significantly. When done correctly, overclocking can also provide improved performance with little to no risk to your hardware. However, due to the complexity and technical nature of this process, it is important that you research and understand fully before attempting an overclock on your own.

In general, overclocking requires additional cooling, advanced BIOS settings, and additional stress testing in order to ensure the reliability of your system.

Before beginning the overclocking process it’s important that you understand the processor architecture and available BIOS features associated with your motherboard. Some motherboards have limited BIOS features so understanding your options before attempting an overclock is essential in order to ensure that you get the most out of your system without compromising its stability or safety. Also important is understanding how each component affects overall performance; for example increasing either a processor or GPU core clock speed can have different effects depending upon their architecture.

Once you’ve familiarized yourself with the technical aspects related to overclocking and wish to proceed, it’s recommended that you begin by establishing a base frequency for each component; some processor architectures are particularly sensitive to CPU frequencies and voltages when attempting an overclock so starting from lower base speeds may help achieve greater overall clock speed stability once completed. From here it’s also smart to integrate additional cooling options such as liquid coolers or aftermarket fans as these are paramount in attaining reliable performance while overclocking any hardware components on higher-end motherboards.

Overall, with all due research and caution taken into account before getting started; successful overclocking can yield positive results related both financially (from potential savings on buying newer upgrades) and in terms of system reliability (from improved responsiveness). However it should be noted that using extreme measures such as high voltage may damage particular components within the motherboard irreversibly; so it is highly advised that basic precautions such as setting up cooling systems ahead of time be taken prior participating in any kind of extreme measures within overclocking abilities associated with one’s motherboard setup.

How to overclock your CPU - GameSpot

Importance of overclocking in improving computer performance

Overclocking is the practice of manually adjusting the clock speed of a computer’s central processing unit (CPU) beyond its rated maximum speed. By doing so, it is possible to improve the computing power of a system for faster speeds, increased responsiveness and a larger working area. Since overclocking increases the frequency at which a processor operates, it can also reduce the amount of time needed to perform certain tasks. Additionally, overclocking can extend the life of a piece of hardware by reducing heat output and staving off premature obsolescence.

When done properly, by utilizing software designed for this purpose and taking advantage of up-to-date components and effective cooling solutions, overclocking provides great performance gains without risking hardware failure or voiding warranties. For example, consoles are often limited in their hardware selections due to form factors or cost constraints but they can still offer outrageous performance numbers when tweaked properly with overclocking. For desktop machines, faster and more efficient clocks increase game performance with improved frame rates while allowing extra features such as higher resolution textures without requiring expensive upgrades to do so.

By understanding how to overclock your motherboard effectively, you’ll be able to take your computer’s performance much further than you could have ever imagined!

Components of Overclocking

Understanding the core components involved in overclocking your motherboard can help you decide how you want to configure your system. Generally, motherboard manufacturers provide different components that enable users to do overclocking and have varying levels of flexibility.

It is important to note that when making a change to any component related to overclock, it should not exceed the allowable limit as set by the manufacturer; otherwise, there can be potentially permanent damage caused to your hardware.

The main components of overclocking include the CPU itself, the motherboard’s BIOS settings, a power supply unit (PSU), airflow and cooling solution, and some other peripherals like cooling fans. The CPU is obviously an important factor as it will determine both speed and stability of an overclock. On the other hand, a good quality PSU is also necessary for providing adequate power for more intense tasks associated with overclocking. When it comes to heat dissipation from such activities, an efficient cooling system becomes paramount; air-cooling solutions were previously available but increasingly liquid coolers are becoming popular amongst enthusiasts as they provide better thermal performance in extreme scenarios. Lastly, some additional peripherals such as extra case fans or heatsinks may sometimes be required for heavy overclockers depending on the make-up of their system build.

CPU (Central Processing Unit)

Before overclocking your motherboard, it’s important to understand the basics of how a computer works. The central processing unit (CPU) is the brain of a computer — it handles instructions from programs, processes data and carries out calculations. Because the speed at which it operates determines how quickly tasks get done, it is beneficial to increase its clock rate above its default value. Overclocking involves bumping up your CPU’s clock rate above its rated specifications in order to gain more performance out of your machine.

When overclocking your CPU, there are several factors to take into account such as the design of the motherboard, quality of components on board (capacitors and transistors) and cooling system installed. It’s important to keep watch over these components while overclocking so that you don’t push them beyond their rated capabilities — otherwise you could end up with permanent hardware damage or even an unstable system. With that said, let’s look at an example by using a mid-tier Intel Core i7 8700K processor and Asus ROG Strix Z370-E motherboard as an example combo.

Overclocking is best done gradually. Start by changing settings in specific increments as this will prevent any unnecessary issues from occurring during the process. Overclocking requires adjustment of parameters working within BIOS such as bus frequency (FSB), operating voltage for CPU core or I/O voltage etc., which then reflects on automatic tweaking of other related settings like memory frequency or timings or memory voltage etc. Therefore when attempting to overclock a PC — whether you do it through software or manually in BIOS — ensure that you know how all interconnected pieces should be configured for successful results yet maintaining safety margins for long-term reliability AI (Artificial Intelligence) algorithms may also be employed on select motherboards enabling automatic fine tuning and some degree of overclocking without extra effort from user side.

Motherboard makers are sidestepping Intel's CPU overclocking lock | PC Gamer


Overclocking a motherboard is the process of increasing its performance by increasing the base clock speed and / or multiplier, raising the voltage, and improving system cooling. Each motherboard has different overclocking methods, so it’s important to have an understanding of your specific model before attempting it. When performing an overclock, you should first understand the hardware components being overclocked, evaluate the risk factors associated with doing so, ensure proper airflow and cooling for any temperature sensitive components, know all your CPU’s speeds, multipliers and voltages, familiarize yourself with tools that can help in monitoring temperatures and diagnosing potential problems. Once you are comfortable with these concepts you’re ready to begin the process of overclocking.

Before proceeding always make sure that your computer software is up to date with the latest BIOS and drivers as this will provide additional performance gains as well as any bug fixes that may be required while overclocking. Next you need to ascertain what type of chipset or processor your board has as this will tell you which type of overclock profile can be used along with any best practices on how to use them in different scenarios. Different motherboards have varied overclock profiles such as “Easy Mode” , “Intelligent” or “Advanced Overclocking”.

From there if it’s possible make sure your CPU isn’t limited by throttling due to thermal protection from heat overload issues from its max power draw wattage. It’s best practice to also research other similar CPUs used by other enthusiasts (i7/i5/etc) from social media accounts like Reddit who have provide experiences on stability issues under varying circumstances such voltage setting changes etc. This data will provide insight on what recommented settings should work for you own setup giving consideration to possible bottlenecks at each stage before proceeding further by adjusting multiple components at once thus allowing for precision tuning.

Now when ready start making small frequency increments at a time while monitoring heat sensor readings then benchmarking their performance levels until reaching a desired level where stability persists even under prolonged load testing (running apps/games etc) while watching out for potential performance or compatibility issues with certain applications which could later be identified during daily usage patterns. Lastly once all necessary tests are done save all settings so they can easily reloaded later if needed ensuring your remain confident in what kind information was recorded at every step taken during then entire ovcercloking process…

RAM (Random Access Memory)

RAM (Random Access Memory) is one of the most important components within a computer, responsible for storing running tasks and providing fast access to data. As such, it plays a key role in system performance. Overclocking RAM enables faster speeds than what is specified by its manufacturer; however, if done incorrectly it can potentially damage the PC or lead to instability.

Before overclocking RAM, users must do their research and understand the consequences of speeding up memory too much and too quickly. Users should read their motherboard’s documentation for RAM speed limitations, browse specific forums for more personal advice from experts on their board’s capabilities, set up stress tests once the system is running at higher speeds and install tools to monitor the temperature of relevant components such as processors and GPUs.

Overclocking RAM involves playing with different combinations of frequency clock cycles and voltage levels until stability tests show no failure or instability issues after several runs at any given speed overclock setting. If a user encounters errors during initial testing phases that can indicate an unstable setup due to incorrect overclock settings. It is then recommended to reduce the previously changed values back down to something more manageable until further testing can be done.

Besides overclocking RAM users should strive for balancing other processor speeds as well along with electrically cooling parts before trying very aggressive overclocks as this will help achieve maximum stability and reduce chances of hardware damage from overheating due to inadequate cooling solutions.

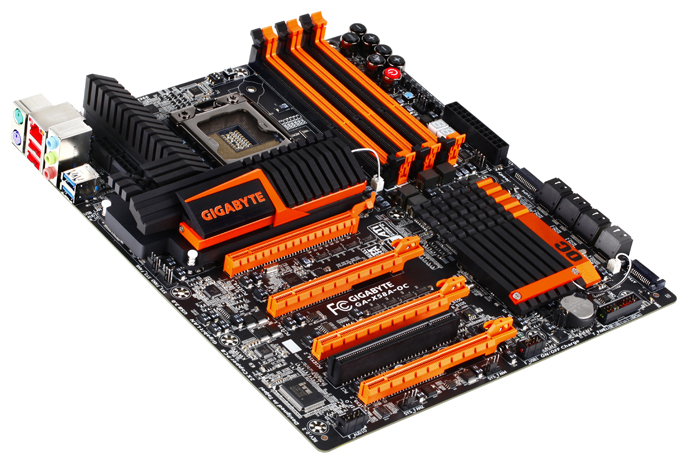

GIGABYTE Launches X58A-OC: World's First Overclocking Motherboard | News -  GIGABYTE Global

III. Steps to Overclock a Motherboard

Overclocking can be divided into several steps, with the most important being setting the right voltage levels and finding the right combination of system settings. Adjusting the bus speed and multiplier are also important, as well as configuring memory’s speed, timings and voltage.

1) Set Voltage Levels: Before getting started with overclocking, it is vital that you make sure all components have enough power supply to enable smooth operation. This will require you to set an appropriate voltage level using your motherboard’s BIOS/UEFI. It is recommended that you start out by setting a high voltage level (1.3 – 1.5V for CPUs) before dropping it down gradually until the system is stable at its maximum frequency.

2) Select Bus Speed and Multiplier: This step involves selecting compatible bus speeds for your processor, many of which can be changed through your motherboard’s BIOS/UEFI or via software utility after installation (usually provided by your motherboard manufacturer). The best option here is to set an optimal speed such as 100MHz/125MHz from your BIOS/UEFI menu – failing this an application-level tweak may be used instead but bear in mind that these may not always yield expected results.

3) Memory Settings: Here, memory capacity and type need to be considered when opting for optimal overclocking settings. The RAM needs to run faster than its rated frequency in order to ensure stability within the system – this can either be 0 or +0/+1 (software only). You should also adjust timings according to memory specifications before setting a suitable RAM voltage (generally between 1V-2V).

4) Stress Test: After applying overclocked settings your newly configured system needs stress testing using benchmarking applications such as Prime95 or Intel Burn Test before being deemed stable enough for use. It’s important here that you apply a suitable cooling solution throughout this test period in order to direct excessive heat away from the core area – high efficiency air coolers or liquid cooling solutions are recommended for this task.

Step 1: Gather necessary tools and software

The first step for overclocking your motherboard is to make sure you have all of the necessary tools and software to do so. Firstly, you will need a motherboard that is designed for overclocking, such as one from Asus or Gigabyte. You will then need an appropriate cooling system or fan to dissipate heat generated by the increased voltages.

You will also need a software utility to set the appropriate BIOS settings; popular options include Intel Extreme Tuning Utility (XTU) and AMD Overdrive. Lastly, you should have a friend who is knowledgeable in computer hardware on hand to help you if any problems arise while attempting to overclock your system. Once you have all of these components and are sure they are compatible with each other, you can move onto the next step!

Step 2: Enter the BIOS settings

Step 2: Enter the BIOS settings. Before you can begin to overclock your motherboard, you must first enter the BIOS settings. Depending on your specific motherboard and its manufacturer, there may be different menus or setup screens. Pay close attention to the required keystrokes (or a combination of keys) that are listed in order to access the BIOS settings.

Once you’re in the BIOS setup screens, you should be able to find an option titled “overclocking” or “performance enhancement” which should give you access to various parameters that allow adjustment of your hardware components like the processor core voltage, CPU frequency and multipliers.

Don’t attempt to increase these parameters unless absolutely necessary! Bear in mind that making changes without a thorough understanding of how they work may result in system instability or even data loss.

Step 3: Increase the CPU clock speed

The next step to overclocking the motherboard is increasing the CPU clock speed. The clock speed of a CPU is measured in gigahertz (GHz) and is the rate which instructions are being processed by the chip. Before you can start overclocking, it’s important to understand what voltages and temperatures your processor can handle. If an incorrect voltage or temperature is applied, it could damage or destroy the processor.

To increase your clock speed, adjust your BIOS settings on your motherboard. Every motherboard is different, so consult your user manual for instructions specific to your model. In general, you will select the option labeled “CPU Clock,” then you will be able increase or decrease the frequency in MHz increments. You should start off with a very small increase and adjust as necessary to get the desired core frequency. Make sure you’re keeping an eye on temperatures as you do this – if they get too hot, reduce the core frequency immediately and let it cool down before trying again. Keep making small adjustments until you find a balance between performance and stability, then save those settings in BIOS before continuing on with more aggressive overclocking measurements such as increasing core voltages and memory timings.

MSI Demonstrates 5.1 GHz Intel Alder Lake Non-K CPU Overclocking on MAG  B660M Mortar Motherboard, Features New 'OC Engine' & PCIe Gen 5 Support


In conclusion, overclocking a motherboard can be a fairly involved and technical process. It is important to understand the limitations of your hardware before attempting any type of overclock, as excessive overclocks may lead to damaging components. With all that said, successfully overclocking a motherboard can provide some very rewarding results. An increase in performance from even small overclocks can have a big impact on overall system performance, and the satisfaction of achieving it yourself is an added bonus!

Finally, it’s important to remember that while the process of overclocking your hardware may seem intimidating at first, with a basic understanding of how it works and what types of hardware are available you can reach new levels of performance. In addition, always ensure you are properly cooled and don’t forget to take some extra precautions when dealing with such sensitive components!

Importance of caution when overclocking a motherboard

When it comes to overclocking the motherboard, extreme caution is essential. With the combination of increasing power and utilizing a higher frequency, those who overclock experience increased performance, so long as they do it correctly. Before attempting to overclock a motherboard, however, it is important to consider several factors that could increase the risk of damaging your hardware. Doing thorough research will ensure that you are able to apply safe overclocking practices for your particular motherboard.

Some of the factors you should consider include:

checking for bios updates from your manufacturer prior to attempting the overclocking process; making sure the BIOS on your model supports overclocking; and ensuring that all cables are securely connected in order for adequate power supply to both processor and memory components. Additionally, users should check their cooling system prior to executing an overclocking process to combat potential overheating issues – this can ultimately help prevent unnecessary damage resulting from an attempt at increasing performance.

It is important not only to execute proper research before beginning this process but also throughout the entire duration of it as well. As guidelines or stability tests vary between brands and models, users must progress with caution while proceeding through their personal journey of successfully overclocking their respective motherboards.

Factors to consider when overclocking a motherboard

When you’re overclocking a motherboard, there are several factors you need to consider. To ensure you get the best performance out of your overclocking efforts, it’s important to be aware of these factors and make sure to allocate adequate time and resources for tuning. Overshooting the target frequency or inadequate cooling can cause permanent damage to the processor or other components on the motherboard.

Traditionally, users have to employ a certain degree of trial and error when overclocking their motherboards, however modern motherboards often come with helpful features like automatic overclocking which helps eliminate some of the guesswork. Additionally, printable guides for handling various brands/models are often available which also serve as a good starting point for experienced overclockers. Before making any changes, it is up to that individual user to determine how far they’re comfortable pushing their setup – based on such factors as performance vs desired cost/complexity, etc..

Factors to consider when overclocking include:

  • CPU type, model number and age
  • Voltage settings
  • Maximum RAM speed
  • BIOS version (or UEFI firmware version)
  • Motherboard VRM configuration
  • Aftermarket cooling solutions like waterblocks or aftermarket CPU coolers
  • Available power delivery – both frequency and current output capability

When attempting any kind of overclock, pay close attention not just the actual voltage being applied but also its quality (dynamic load tracking). In addition make sure that adequate cooling measures are taken – no matter what type of cooler is used (air cooling, watercooling etc). Using tools such as P95 and Prime95 are recommended for testing various settings and validating that stability has been achieved before continuing further in order for possible hardware damage from overheating/voltage misapplication/etcetera is avoided.
